Convert your Honda OBD1 ECU from Distributor Ignition to Coil-on-Plug (COP).
     More ignition power by the 4 separate ignition coils. Ideal for high reving, high power engines
     or Turbo-conversions. It even can be used on the stock engine to replace the distributor.
     The distributor act now as Cam angle sensor. The aged and known to fail parts like the distributor
     finger, the cap, ignition coil and ignition module will not be needed any longer. They can be
     removed.

     On the COP1 Kit a control board will be installed into the ECU and provides 4 ignition outputs
     which are compatible with the Honda S2000/K20/K24 and the new D16V/D17 Coil-on-Plugs.
     You even can use other smart ignition coils.

     COP1 is compatible with the stock ECU, every "chiped" ECU and even every piggypack system.
     By the superior design of our COP1 it does not have any Timing-Drift and it will be all the time
     resynchronized by using the cam angle signals!
     So our system is even usable with ignition cut!



     Not compatible with ECUs which has the Knock-Sensor-Board installed!






     COP1 is available in the following options:

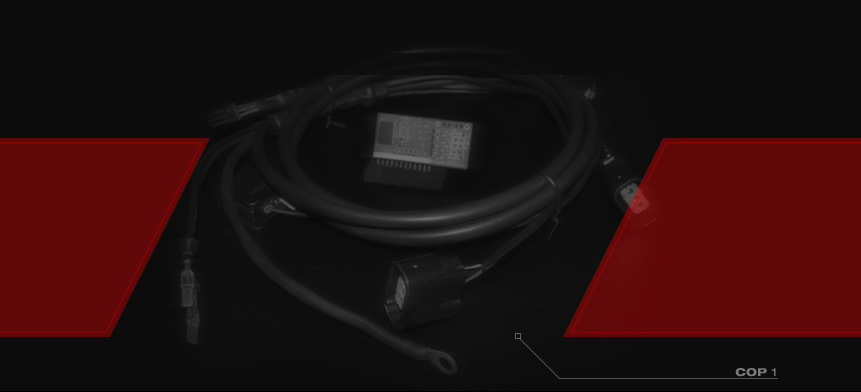

     * Plug-n-Play: COP1 Board, Coil-on-Plug Harness with S2000/K20 COP connectors installed
     * and pins crimped and prepared for the connection to the distributor connector
     * DIY1: COP1 Board, ECU-Connector for the Coil-on-Plug Harness, 4x Connector for S2000/K20
     * Coil-on-Plugs
     * DIY2: COP1 Board, ECU-Connector for the Coil-on-Plug Harness


















































     • Compatible with all OBD1 ECUs, regardless of stock, chipped or piggypack system installed
     • More ignition power through the separate ignition coils
     • Absolute no timing drift
     • All time synchronization by cam angle signals
     • Compatible with ignition cut
     • Distributor finger, distributor cap, ignition coil and ignition module are not needed anymore
     • Simple installation





























 Produkt
Verfügbarkeit
Preis (EUR)
Menge
  COP1 Plug-n-Play
Verf (wenig Lagernd)
250.00
  COP1 DIY Kit + K20/S2000 COP Connector
Verf (Lagernd)
145.00
  COP1 DIY Kit
Verf (Lagernd)
125.00
  Installation Service (soldering into ECU)
Verf (Lagernd)
25.00
exkl. MwSt.
